took apart new cdm wastegate
05-24-2007 | 04:17 AM
#1
Thread Starter
3.0 BAR
Joined: Jan 2006
Posts: 2,057
took apart new cdm wastegate

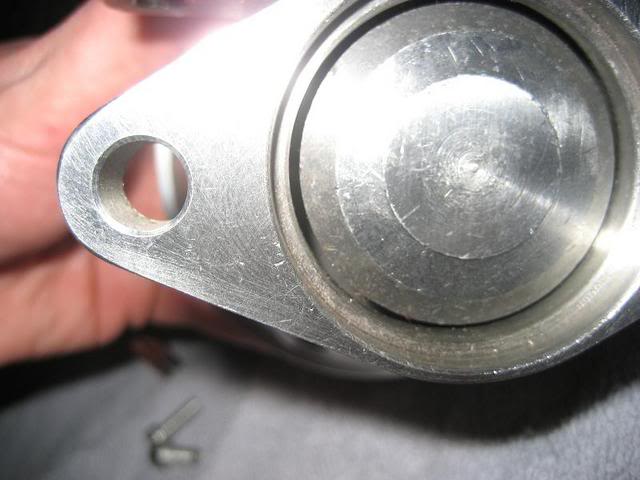

got my new jackie chan wastegate today so of course i take it apart to see what kinda job the 10yr old that made it did. i dont know what im looking for so heres some pictures anyways. i'm no expert but i think it came with a used spring :1 it was $49 + shipping = 69 or somthin (from the new ssac site) so if it works ill be happy with it.
im guessing the narrower spring is a stiffer spring, not sure which is what psi so if anyone knows help me out
not really sure if this deformity of the diaphram is ok or not...
im guessing the narrower spring is a stiffer spring, not sure which is what psi so if anyone knows help me out
not really sure if this deformity of the diaphram is ok or not...
05-24-2007 | 05:31 AM
#2
0.0 BAR
Joined: Feb 2003
Posts: 0
Re: took apart new cdm wastegate
They are knock offs of the real deal, you can interchange seals, top hats, bodies, etc.
TiAL small (35, 38mm) gates usually rock the small inner spring, but can run an outer spring either by itself or in addition to the small spring.
TiAL large (44mm, etc) gates usually rock the large outer spring, but can run a small inner spring either by itself or in addition to the large spring.
Car I was tuning earlier has a TiAL red outer spring and a ching chong meow red inner spring. FYI, the spring rates just add up. Check TiAL's website for details.
TiAL small (35, 38mm) gates usually rock the small inner spring, but can run an outer spring either by itself or in addition to the small spring.
TiAL large (44mm, etc) gates usually rock the large outer spring, but can run a small inner spring either by itself or in addition to the large spring.
Car I was tuning earlier has a TiAL red outer spring and a ching chong meow red inner spring. FYI, the spring rates just add up. Check TiAL's website for details.
05-24-2007 | 06:08 AM
#3
Thread Starter
3.0 BAR
Joined: Jan 2006
Posts: 2,057
Re: took apart new cdm wastegate
mine came with just the big dirty one installed. i orderd the one with a 5psi spring from the site so i figured it was that one.
tial site says the large dirty one is 11.6psi and the small one is 5.8psi, which is strange cause the small one feels stiffer, but it is shorter
this is assuming tials 38mm wastegate springs are the same as mine
tial site says the large dirty one is 11.6psi and the small one is 5.8psi, which is strange cause the small one feels stiffer, but it is shorter
this is assuming tials 38mm wastegate springs are the same as mine
05-24-2007 | 12:02 PM
#5
3.0 BAR
Joined: Dec 2004
Posts: 1,976
Re: took apart new cdm wastegate
Originally Posted by WTF
mine came with just the big dirty one installed. i orderd the one with a 5psi spring from the site so i figured it was that one.
05-24-2007 | 03:44 PM
#7
0.0 BAR
Joined: Feb 2003
Posts: 0
05-25-2007 | 03:28 AM
#10
1.5 BAR
Joined: Jan 2006
Posts: 865
Re: took apart new cdm wastegate
I picked up a couple of those myself. gonna try them out.
my crx will be the test subject this weekend, so we'll see. And the flanges that it came with looks like aluminum, but they are not and weld up just fine.
my crx will be the test subject this weekend, so we'll see. And the flanges that it came with looks like aluminum, but they are not and weld up just fine.
